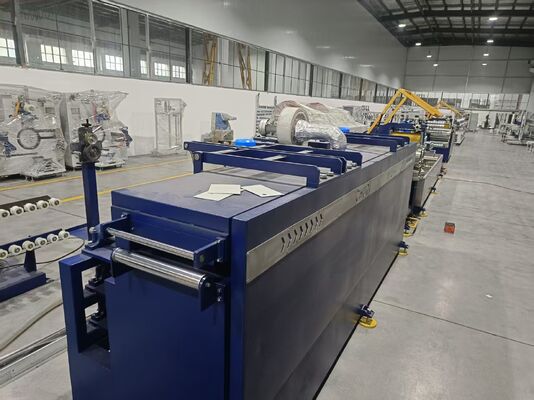

Multi-Zone Sizing Oven with Far-Infrared Heating and 100mm Insulation for Precise Heat Setting

Multi-Zone Sizing Oven with Far-Infrared Heating and 100mm Insulation for Precise Heat Setting
Multi-Zone Sizing Oven with Far-Infrared Heating and 100mm Insulation for Precise Heat Setting

Grote Afbeelding :  Multi-Zone Sizing Oven with Far-Infrared Heating and 100mm Insulation for Precise Heat Setting

Productdetails:
Plaats van herkomst: China
Merknaam: CHUQI
Modelnummer: CQ-SPP120-6
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1SET
Verpakking Details: HOUTEN KIST
Levertijd: 60DAGEN
Betalingscondities: T/T
Levering vermogen: 10 sets
Contact

Multi-Zone Sizing Oven with Far-Infrared Heating and 100mm Insulation for Precise Heat Setting

beschrijving
Lengte: 4,0 m Binnenvoering: 304 roestvrij staal
Isolatie: 100 mm Verwarmingsvermogen: 20 kW
Verwarmingsmethode: Far-Infrared Temperaturen. Nauwkeurigheid: ± 2 ℃
Deurverrichting: Motorisch aangedreven

Multi-Zone Sizing Oven with Far-Infrared Heating and 100mm Insulation
Product Introduction

Heat setting is the key process in PP strapping production to "freeze" molecular orientation, relieve internal stress, and reduce thermal shrinkage. This production line is equipped with a 4.0-meter long, 0.6-meter internal width far-infrared sizing oven.

Far-infrared heating tubes provide high thermal efficiency and strong penetration, quickly and uniformly heating the tape. The oven is divided into multiple independently controlled zones, allowing different temperature profiles according to process requirements. The 100mm thick high-efficiency insulation greatly reduces heat loss, lowers energy consumption, and ensures stable internal temperature. A motor-driven door opening mechanism (1.5KW) facilitates operation and maintenance.

Main Specifications
  • Oven Length: 4.0 meters
  • External Width: 1.0m, Internal Width: 0.6m
  • Inner Lining Material: 304 Stainless Steel
  • Insulation Thickness: 100mm
  • Heating Power: 20KW
  • Heating Method: Far-infrared heating tubes
  • Temperature Range: Adjustable 50-200℃
  • Temperature Control Accuracy: ±2℃
  • Door Opening Motor: 1.5KW
Technical Parameters
Item Parameter
Length 4.0 m
Internal Width 0.6 m
Inner Lining Material 304 Stainless Steel
Insulation Thickness 100 mm
Heating Power 20 KW
Heating Elements Far-infrared tubes
Temperature Range 50 - 200°C
Temp. Control Accuracy ±2°C
Door Motor 1.5 KW
Customer Q&A
Q: What are the advantages of far-infrared heating over ordinary electric heating tubes?
A: Far-infrared radiation directly acts on the tape surface, with strong penetration and high heating efficiency, without excessively heating the air. This results in faster warm-up, more uniform temperature distribution, contributing to uniform crystallization and setting, while saving electricity.
Q: Is the 100mm insulation really necessary?
A: Absolutely. It keeps the oven outer surface cool, improving the working environment; reduces heat loss, saving about 20-30% of heating energy; and stabilizes internal temperature, making control more precise.
Q: What is the purpose of the door opening motor?
A: The oven door is heavy. Manual opening is strenuous and unsafe. The motor allows easy one-touch opening and closing, facilitating cleaning inside, threading, or maintenance. The door has a safety interlock that cuts power when opened.
