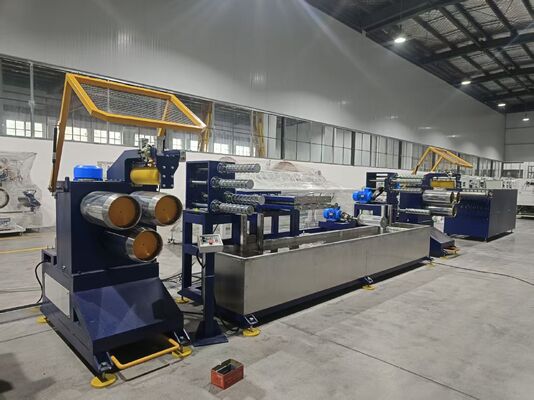

Dual Cooling Water Tanks with Adjustable Temperature 10-25°C and Movable Design for PP Strapping Production

Dual Cooling Water Tanks with Adjustable Temperature 10-25°C and Movable Design for PP Strapping Production
Dual Cooling Water Tanks with Adjustable Temperature 10-25°C and Movable Design for PP Strapping Production

Grote Afbeelding :  Dual Cooling Water Tanks with Adjustable Temperature 10-25°C and Movable Design for PP Strapping Production

Productdetails:
Plaats van herkomst: China
Merknaam: CHUQI
Modelnummer: CQ-SPP120-6
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1SET
Verpakking Details: HOUTEN KIST
Levertijd: 60DAGEN
Betalingscondities: T/T
Levering vermogen: 10 sets
Contact

Dual Cooling Water Tanks with Adjustable Temperature 10-25°C and Movable Design for PP Strapping Production

beschrijving
Afkoelfasen: Dubbel Eerste tanklengte: 3,5 m
Tweede tanklengte: 5.5m Materiaal: 304 roestvrij staal
Watertemp. aanpassing: 10-25°C Mobiliteit: Eerste tank volledig instelbaar
Proceswaarde: Gefaseerde precisiekoeling
Markeren:

dual cooling water tanks for PP strapping

,

adjustable temperature water tanks

,

movable cooling tanks for production

Dual Cooling Water Tanks with Adjustable Temperature (10-25°C) and Movable Design
Product Introduction

Cooling and setting is the key transformation process of PP strapping from melt to solid product. This production line features a dual-stage cooling system with a first cooling water tank and a secondary cooling water tank.

The first tank is 3.5m long, equipped with a honeycomb water inlet, adjustable water level, and multiple sets of sizing tracks. The entire tank can move forward/backward and up/down for easy alignment. The secondary tank is 5.5m long, with water temperature precisely adjustable between 10-25°C, ensuring the product fully crystallizes and sets at low temperature.

The dual-tank design achieves a staged cooling process of "quenching + low-temperature precision cooling," effectively controlling crystallinity, reducing internal stress, and improving product dimensional stability and mechanical properties.

Main Specifications
  • First cooling tank: L3.5m×W0.8m×H0.65m, 304 stainless steel, plate thickness 2.0mm, lifting motor 0.55KW, honeycomb water inlet, adjustable water level, multiple sizing tracks, fully movable
  • Secondary cooling tank: L5.5m×W1.3m, tank width 0.65m, 304 stainless steel, plate thickness 2.0mm, water temperature adjustment 10-25°C, built-in water shedding motor 0.75KW and haul-off motors 2.2KW×2 units
Technical Parameters
Item First Cooling Tank Secondary Cooling Tank
Length 3.5 m 5.5 m
Width 0.8 m (tank body) 1.3 m (body), 0.65 m (tank)
Height 0.65 m -
Material 304 Stainless Steel 304 Stainless Steel
Plate Thickness 2.0 mm 2.0 mm
Water Temp. Adjustment Not adjustable (depends on inlet) 10-25°C adjustable
Special Features Honeycomb inlet, adjustable level, sizing tracks, movable Water shedding motor 0.75KW, haul-off motors 2.2KW×2
Customer Q&A
Q: What is the benefit of the first tank being fully movable?
A: It facilitates alignment with the die outlet. When producing different width or thickness specifications, the tank position can be fine-tuned to ensure the tape enters the cooling water smoothly, preventing wandering or friction against the tank edges.
Q: How is the 10-25°C water temperature adjustment achieved in the secondary tank?
A: By connecting an external chiller or cooling tower, together with a temperature sensor and automatic valve in the tank to control the mixing of chilled water. We provide the temperature control interface; the customer supplies the refrigeration equipment.
Q: What is the purpose of the honeycomb water inlet device?
A: It provides uniform, smooth water flow into the tank, avoiding turbulent impact on the tape while quickly removing heat, improving cooling efficiency.
